Pedestrian Scarifiers

Rotorake 600HD & 600HDX

  • Bowls
  • Croquet
  • Tennis
  • Cricket
  • Golf
  • Lawns
  • Local Authority

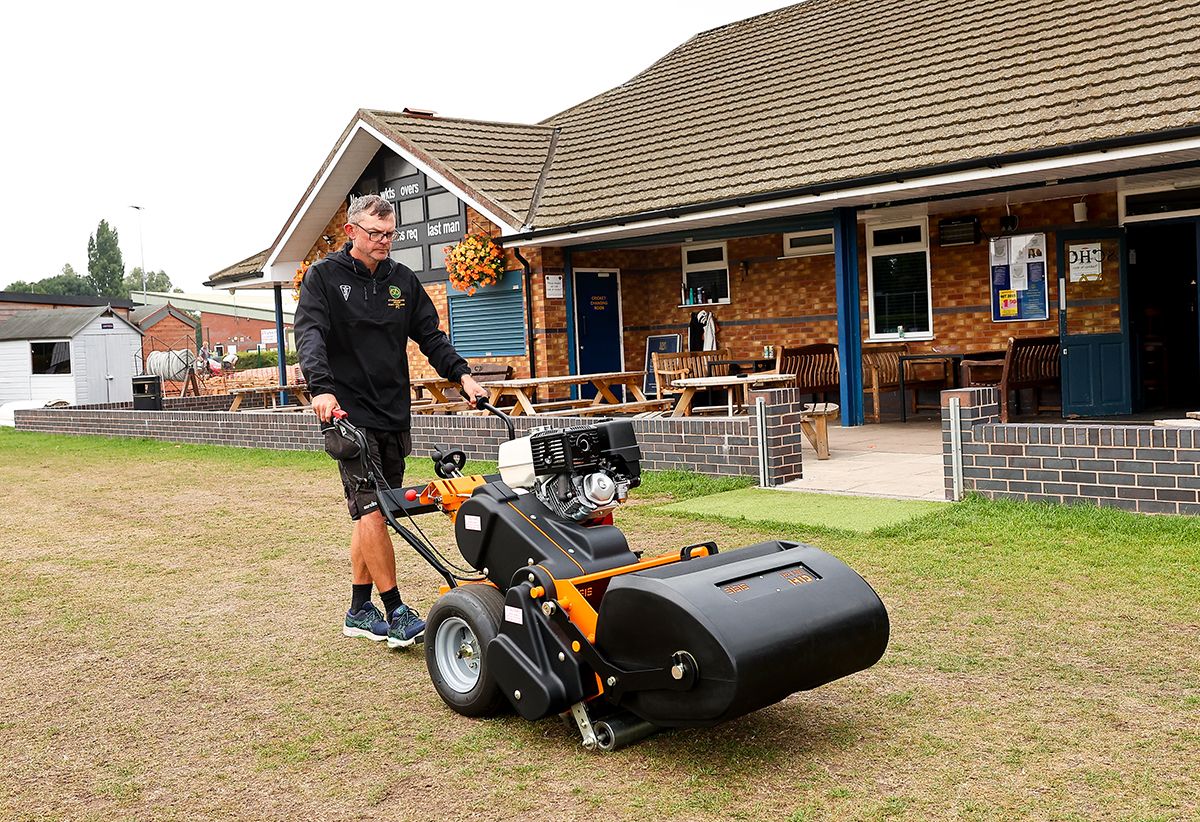

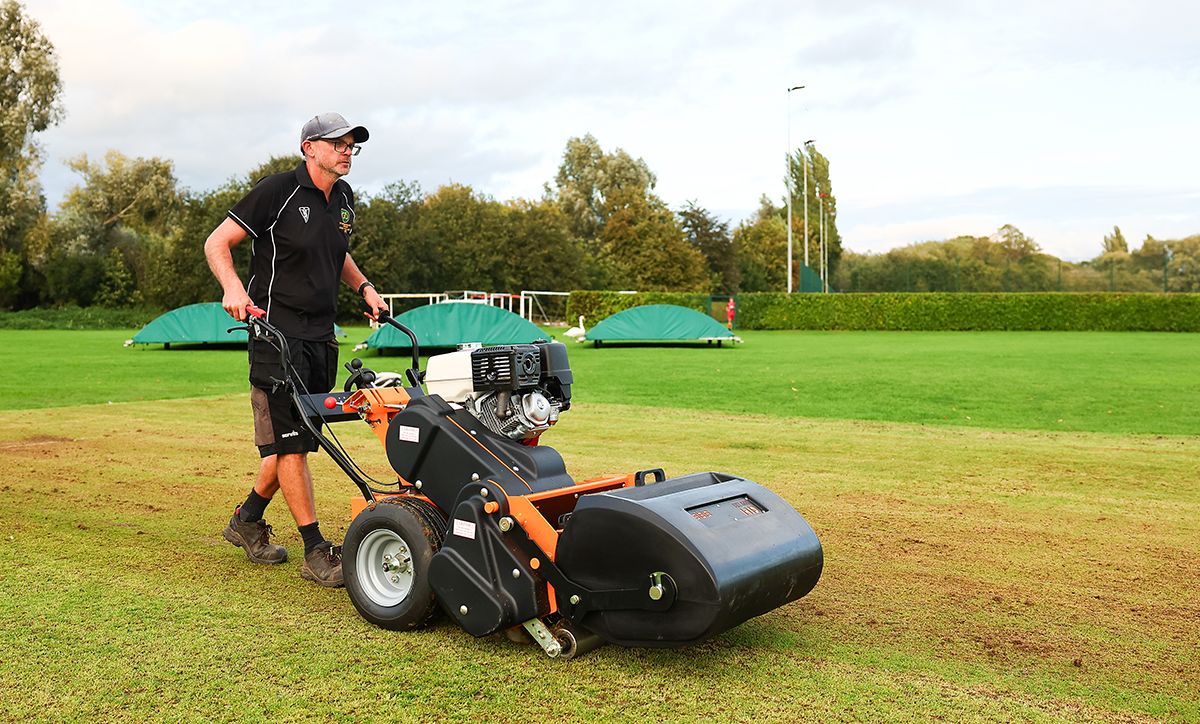

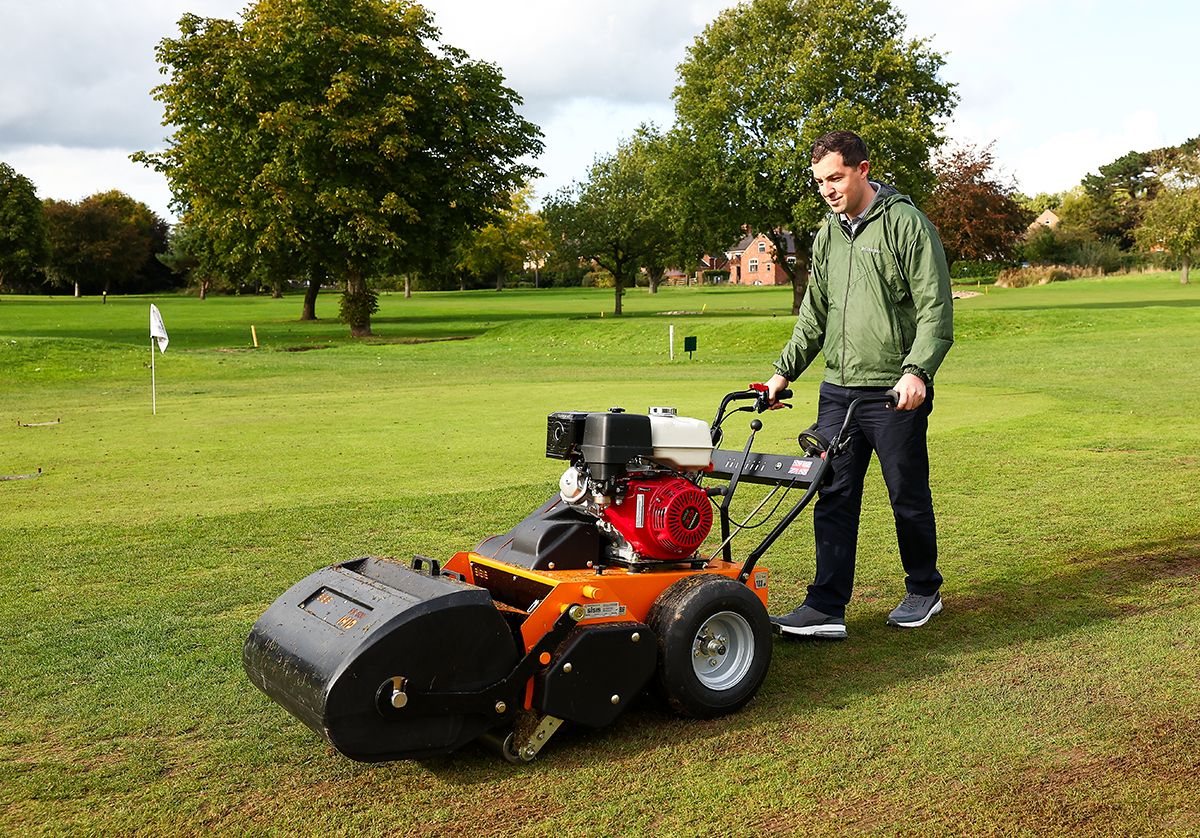

This heavy duty scarifier is equally at home when used for regular routine use at a shallow setting or a deeper setting when required.

Also contributes to aeration and compaction relief by cutting clean, continuous slits to assist water and air absorption.

  • Contra rotating reels with specially designed tipped blades for a clean, consistent performance
  • Quick change reels for ultimate thatch control and removal all year round
  • User friendly operater presence contros designed for maximum operator safety
  • 6 forward speeds for efficiency under varying conditions and depth
  • Reverse gear for manoeuvrability
  • Incorporates independent drive to the wheels and reel
  • 600HDX does not incorporate a collection box

Specification

Rotorake 600HD & 600HDX

  • 600HD600HDX
    Code

    FS1246

    FS1279

    Working width

    600mm (24")

    Engine

    Honda GX390

    16hp V-twin engine

    Working depth

    30mm - with option to go deeper

  • background-hash

    1mm tungsten tipped verticutter reel

    1mm replaceable, wear resistant tungsten tipped blades (12mm spacing) can be used throughout the season

    background-hash

    2mm Scarifying/Thatch Removal Reel

    2mm replaceable, wear resistant tungsten tipped blades (20mm spacing). Ideal for pre & post playing season renovation work.

    background-hash

    2mm Scarifying/Saw Blade Reel

    2mm replaceable, wear resistant tungsten tipped saw blades (24mm spacing). Ideal for pre and post playing season renovation work.

    background-hash

    Verticutter

    Sharpened triangular blades (12mm spacing) used regularly throughout the playing season to control lateral growth and improve green speed.

    background-hash

    Brush Reel

    Used throughout the year for debris collection and clean up. Also used prior to mowing to stand grasses up and improve cut quality.

    background-hash

    Multi Dense/Synthetic brush reel

    Used throughout the year for debris collection and clean up. Also used prior to mowing to stand grasses up and improve cut quality.

    background-hash

    Rolaspike/Sarel Roller

    Provides fast & effective surface aeration. Used during the playing season enables penetration of air, water and fertiliser.

    background-hash

    Faze-Mo Reel

    Heavy duty reel used for removing unwanted surface matter such as thatch and weeds and surface levelling.

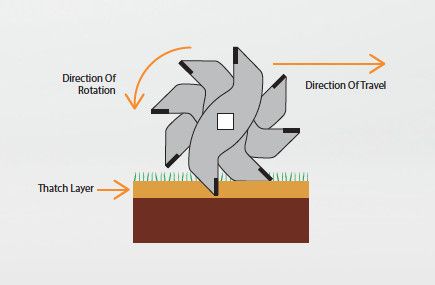

SISIS Contra – Rotation Principle

The Rotorake principle incorporates a series of blades rotating at high speed in the opposite direction to that of the conventional cylinder mower. The blades therefore cut upwards, continuously taking grass fibre away from the surface rather than pushing it into the surface of the turf. This also ensures that the machine is held to the ground and a regular working depth maintained.

background-hashbackground-hash

Rotorake 600HD & 600HDX
